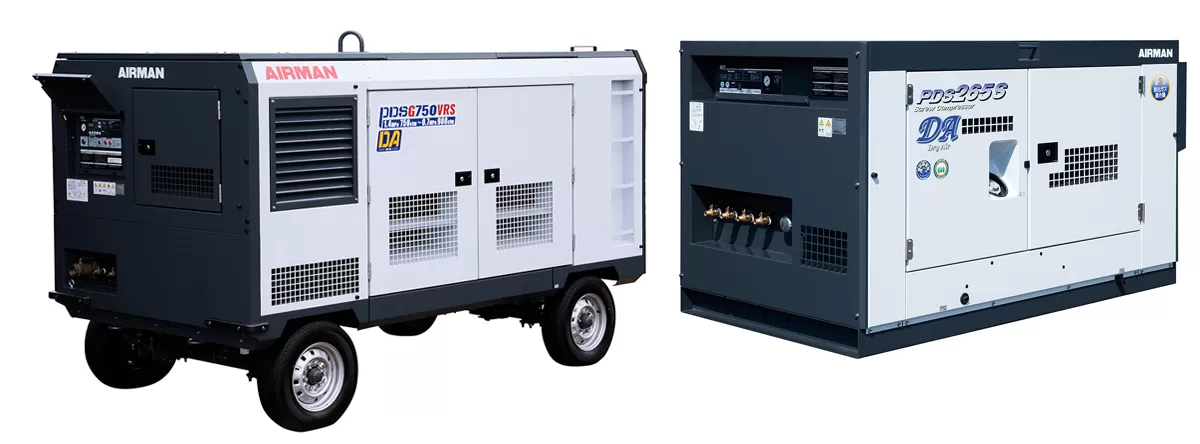

Dry-Air Type PDS-D Series
Product Specification
| Product | Type | Free Air Delivery [m3/min] |
Rated Operating Pressure [MPa] |
Engine Make/Model |
Designated emissions Regulation |
|---|---|---|---|---|---|
| PDS265SD-4C3 | Trailer | 7.5 | 0.69 | YANMAR KDP-4TNV98T |
JPN Stage 3 |
| PDS265SD-5C3 | Box | 7.5 | 0.69 | YANMAR KDP-4TNV98T |
JPN Stage 3 |
| PDS390SD-4C1 | Trailer | 11.0 | 0.69 | ISUZU CI-4JJ1X |
JPN Stage 3 |
| PDS390SD-5C1 | Box | 11.0 | 0.69 | ISUZU CI-4JJ1X |
JPN Stage 3 |
| PDS400LD-5C5 | Leak Guard / Box | 11.3 | 0.7 | KUBOTA V3800-DI-TI-K3B |
JPN Stage 3 |
| PDS400LD-5B5 | Leak Guard / Box | 11.3 | 0.7 | KUBOTA V3800DI-TI-E2B-COHE1 |
JPN Stage 2 |
| PDSF330LDPD-5B5 | Dual Pressure / Leak Guard / Box |
9.3/10.6 | 1.03/0.7 | KUBOTA V3800DI-TI-E2B-COHE1 |
JPN Stage 2 |
| PDS600SD/F550SD-4C5 | Dual Pressure / Trailer | 15.6/17.0 | 1.03/0.7 | ISUZU AI-4HK1X |
JPN Stage 3 |
| PDS655SD-4B2 | Trailer | 18.5 | 0.7 | HINO J08C-V |
JPN Stage 2 |
| PDS670SD-4C5 | Trailer | 19.0 | 0.7 | ISUZU AI-4HK1X |
JPN Stage 3 |
| PDSF530SD-4B2 | High pressure / Trailer | 15.0 | 1.03 | HINO J08C-V |
JPN Stage 2 |
| PDSG290LVRD-5C5 | Variable pressure & air delivery / Leak Guard / Box | 9.6〜8.2 | 0.6〜1.4 | KUBOTA V3800-DI-TIE3B |
JPN Stage 3 |
| PDSG750SD-4C5 | Variable pressure & air delivery / Trailer | 25.5～21.2 | 0.5～1.4 | HINO J08E-UK |
JPN Stage 3 |
