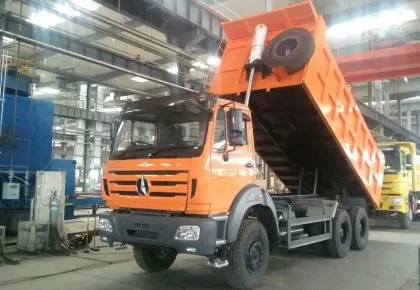

BEIBEN 6X4 340hp 20t Dump Truck with Good

BEIBEN 6X4 340hp 20t Dump Truck with Good Price for Sale

Model

ND3255B41J

Driving type

LHD (Right Hand Drive is optional）

Driver's cab

Long cabin, with one sleeper

Engine

Maker: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling

Engine model: WP10.340E32

EURO II/EUROIII emission standard

Maximum output: 340HP @2200 rpm

Number of cylinder:6

Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

FULLER Brand transmission.

Front Axle

Benz front axle 7.5 tons

Rear Axle

Benz double reduction drive axle

Steering

TAS85

Option: ZF8098, hydraulic steering with power assistance

Wheel & Types

Tires: 12.00R20

Optional: 12R20/12R22.5

Radial tire and tubeless tire is optional

Electrics

Operating voltage: 24V, negative grounded

Dimensions in mm

Wheel base:                           3800+1450

Overall size:                       8260x2500x3450

Weight in kg

Kerb weight                             12220

Permissible trailing capacity               25000

Performance

Maximum driving speed(km/h)             85

Body mm

5400x2300x1500 Floor 8 side&back4, middle lifting type

The manufacture reserves the right of technical alteration/change for better improvement prior notice
