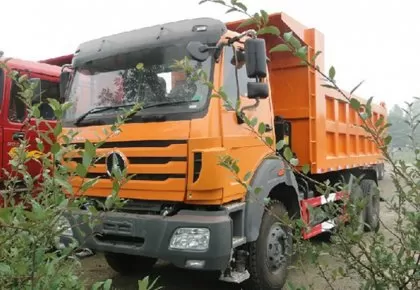

North Benz (Beiben) NG80 2629KZ 6x4 290hp 18m3 Dump Truck
|
Model |
ND3255B41J (2534KY) |
||||
|
Traction type |
6X4 |
||||
|
Driving type |
Right hand driving |
||||
|
Cabin |
Long cabin Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C and single sleeper |
||||
|
Engine Steyr technology, made in China |
WP10. 290E32/280 |
Diesel 4-stroke direct injection engine, 6-cylinder in-line, water cooling, turbo-charging, inter-cooling and EGR (exhaust gas recycling) |
|||
|
Displacement（L） |
9.726/Diesel |
||||
|
Bore x stroke (mm) |
126/130 |
||||
|
Max power（kw/rpm） |
290hp@2200rpm |
||||
|
Emission |
EURO III |
||||
|
Fuel tanker（L） |
400 |
||||
|
Clutch |
Model |
430 diaphragm |
|||
|
Gearbox |
Model |
9JS180 Type:mechanism (Manual) 9gears,1reverse gear |
|||
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|||
|
Assistant brake |
Engine exhaust brake |
||||
|
Park brake |
Potential springs pressing on middle and rear wheels |
||||
|
Steering system |
Model |
ZJ120D |
|||
|
Frame |
Fish belly, shape, variable width, variable sections, side beam structure |
||||
|
Front axle (Mercedes Benz Technology) |
7.5T benz double-shoe pneumatic brake, non-driving steering axle
|
||||
|
Middle and Rear axle (Mercedes Benz Technology) |
13T benz double-shoe pneumatic brake, casting, double reduction driving axles with inter-wheel & inter-axle differential locks |
||||
|
Tyre |
12.00R20 Radial tire |
||||
|
Number of tires |
10+1 spare tire |
||||
|
Electrical system |
Battery |
2X12V/135Ah |
|||
|
Generator |
28V-35A |
||||
|
Starter |
5.4Kw/24V |
||||
|
Parameter |
|||||
|
Max.speed |
85 |
||||
|
Max.Gradeability |
45(%) |
||||
|
Kerb mass (kg) |
12,220 |
||||
|
Rated payload (kg) |
30,000 |
||||
|
Max.payload (kg) |
35,000 |
||||
|
Wheel base (mm) |
4100+1450 |
||||
|
Front overhang(mm) |
1410 |
||||
|
Rear overhang(mm) |
1920 |
||||
|
Front track(mm) |
1995 |
||||
|
Rear track(mm) |
1800 |
||||
|
Approach angle (degree) |
26 |
||||
|
Departure angle (degree) |
28 |
||||
|
Overall dimension (Lx W xH mm) |
8880×2500×3430 |
||||
|
Upper body dimension(mm) |
5400 x2300 x1500 |
||||
|
Bucket capacity (cubic meters) |
18cbm |
||||
|
Thickness of body steel (mm) |
Floor 8mm; side 6mm |
||||
|
Tipping system |
Hydraulic front tipping system |
||||
