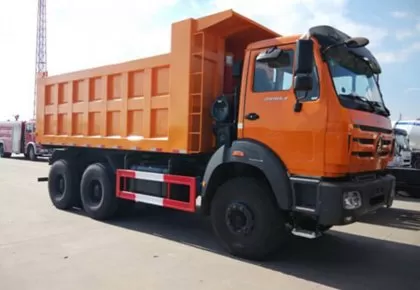

North Benz (Beiben) NG80 2642KZ 6X4 420hp 20m3 Dumper Truck
|
Overall dimension(l*w*h)(mm) |
8347×2500×3310 |
|
|
Driving model |
6*4 |
|
|
Wheel base (mm) |
3800+1450 |
|
|
Wheel distance (front/rear)(mm) |
1995/1800 |
|
|
Track( Front/ rear) (mm) |
1410/1870 |
|
|
Approach/Departure angle ( º ) |
26/32 |
|
|
Max. speed (km/h) |
90 |
|
|
GVW(road) (kg) |
250000 |
|
|
Complete vehicle kerb(kg) |
12200 |
|
|
Engine |
WP12.420, water-cooled, four strokes, 6 cylinders in line,turbocharged, directly injection |
|
|
Rated power (kw/rpm) |
308/2200 (420hp) |
|
|
Max torque (Nm/rpm) |
1460/1200-1600 |
|
|
Fuel tank capacity (L) |
300(steel) |
|
|
Clutch |
430, Single dry frictional disc |
|
|
Gearbox |
12JS200T , mechanism, 12gears, 2 reverse gear, manual |
|
|
Front axle
|
Double-shoe pneumatic brake, non-driving steering axle |
|
|
Middle/Rear axle
|
Air brake by double-shoes, whole casting casing, double reduction rear axle |
|
|
Steering box |
ZF8098 Circulating ball power steering, hydraulic assisted |
|
|
Frame
|
Fish belly shape, variable width, variable section, side beam structure, bilateral bend, cross section channel reinforced steel beam |
|
|
Suspension |
Front: longitudinal laminated leaf-spring , hydraulic telescopic shock absorber Rear: longitudinal laminated leaf-spring ,equalizing suspension |
|
|
Tire |
12.00R20 |
|
|
Braking |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Parking brake |
Spring loaded brake cylinder on rear axles |
|
|
Assistant brake |
Engine exhaust brake |
|
|
Electrical system |
Starter |
5.58KW/24V |
|
Alternator |
28V/70A |
|
|
Battery |
2 x 12V-135Ah |
|
|
Cab
|
NG80B short cab, full steel material structure, Interior A/C |
|
|
Up body |
5800x2300x1500mm Bottom 8mm, side 6mm |
|
