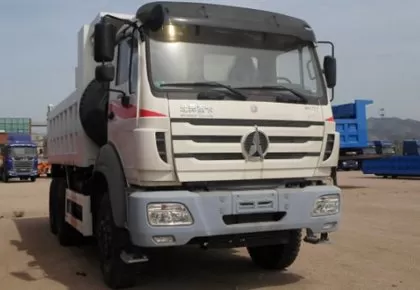

North Benz (Beiben) NG80 2634KZ 6x4 340hp 18m3 Dump Truck
|
Drive System |
LHD (RHD can be optional) |
|
|
Traction type |
6x4 |
|
|
Cabin |
NG80 Short Cabin, Air Conditioner |
|
|
Engine |
Brand |
WEICHAI |
|
Model |
WP10.340E32 |
|
|
Rated power |
340hp |
|
|
Engine displacement |
9.726 liters |
|
|
Gearbox |
FAST 12 Speeds (12JS200T) |
|
|
Clutch |
Ф430 Diaphragm type |
|
|
Steering |
ZF8098 |
|
|
Axle |
Front |
BEIEBN 7.5 Ton |
|
Rear |
BEIBEN 13 Ton double reduction axle, ratio:5.921 |
|
|
Max. running speed (km/h) |
85 |
|
|
Tire |
12.00R20 |
|
|
Spring |
10/13 |
|
|
Fuel tank |
300L |
|
|
Kerb weight (kg) |
12200 |
|
|
Total mass (kg) |
25000 |
|
|
Wheel base (mm) |
4100+1450 |
|
|
Overhang (mm) (front/rear) |
1410/1920 |
|
|
Track (mm) (front/rear) |
1995/1800 |
|
|
Approach / departure angle(°) |
26/32 |
|
|
Dimensions（L*W*H）(mm) |
Overall |
8530x2500x3430 |
|
Dump body |
5400x2300x1500 |
|
|
Thickness (mm) |
Bottom 8 , front 6mm,side 4 |
|
|
Hydraulic lifting system |
Middle lifting |
|
