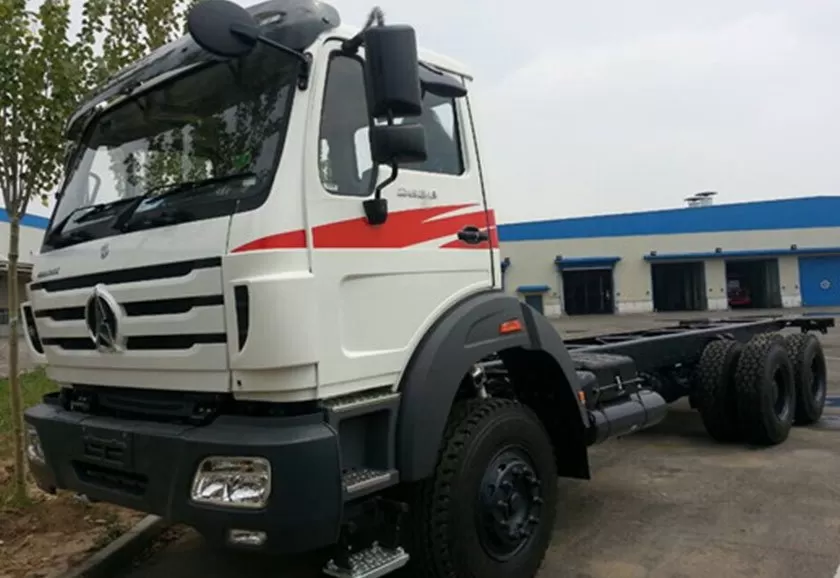

BEIBEN 6X4 2638PZ Lorry Truck Only Chassis

NORTH BENZ 6X4 Lorry Truck

Model

ND1255B50J

Driver's cab

Long cabin, one sleeper

Engine

Maker: North Benz

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling

Engine model: WP10.380E32

EURO II/EUROIII emission standard

Maximum output:380hp@2200rpm

Number of cylinder:6

Displacement: 9.726L

Clutch

Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance

Transmission

Fuller 9JS150A transmission.

Front Axle

Benz, drum brake

Rear Axle

Benz double reduction drive axle, ratio=5.2

Steering

TAS85

Wheel & Types

Rims:8.5-20

Tyre:12.00R20 tube

Optional: 12R22.5, 315/80R22.5

Radial tire is optional

Electrics

Operating voltage: 24V,negative grounded

Dimensions in mm

Wheel base   :   4750+1450

Overall size: 10576x2500x3385

Weight in kg

Kerb. mass: 11300 kg

Total mass: 25000kg

Performance

Maximum driving speed(km/h)             85

The manufacture reserves the right of technical alteration/change for better improvement prior notice
