| Model |

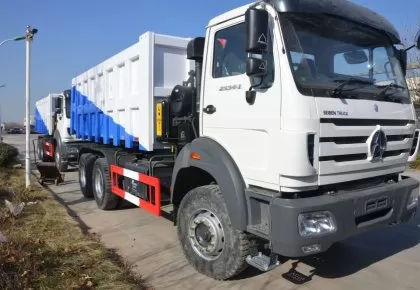

Novus K5DEF 6x4 Tipper |
| |
|
| Engine Specifications |
|
| Make |
Doosan |
| Model |
DE12TIS |
| Capacity (cc) |
11 051 |
| Layout |
6 cylinders inline |
| Type |
Turbo Intercooled |
| Power kw at r/min |
250 @ 2 100 |
| Torque Nm at r/min |
1 421 @ 1 260 |
| |
|
| Transmission |
|
| Make / Model |
S&T T15S6 |
| Number of Forward Gears |
6 |
| Type |
Manual |
| |
|
| Clutch |
|
| Clutch plate diameter (mm) |
430 |
| Type |
Single |
| |
|
| Drive axle |
|
| Reduction type |
Single |
| Final ratio |
6.166:1 |
| |
|
| Brakes |
|
| Type |
Full Air Dual circuit with ABS |
| |
|
| Dimensions (mm) |
|
| Overall Length (OL) |
7 775 |
| Overall Width (OW) |
2 495 |
| Overall Height (OH) |
3 060 |
| Front Overhang |
1 520 |
| Rear Overhang |
1 375 |
| Wheelbase (WB) |
4 880 |
| |
|
| Mass Data (kg) |
|
| Manufacturer's Gross Vehicle Mass (GVM) |
33 500 |
| Manufacturer's Gross Combination Mass (GCM) |
43 500 |
| Manufacturer's Front Axle Mass |
7 500 |
| Manufacturer's Rear Axle Mass |
26 000 |
| Permissible Maximum Front Axle Mass |
7 500 |
| Permissible Maximum Rear Axle Mass |
18 000 |
| Total Unladen Mass |
8 550 |
| Permissible Maximum Drawing Vehicle Mass (DT) |
43 000 |
| |
|
| Capacities |
|
| Fuel Tank (l) |
400 |
| |
|
| Standard Tyre Equipment |
|
| Size and Ply Rating |
315/80R22.5 |
