TRACTOR

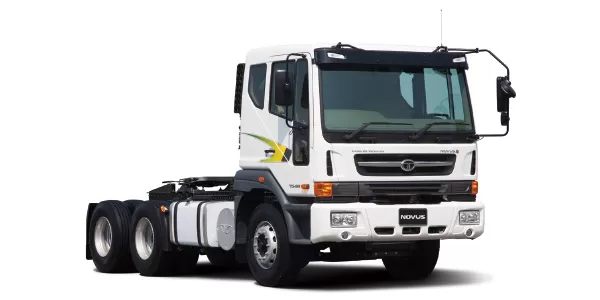

Daewoo Novus KL3TX-ZF
| Model | Maximus KL3TX -Eaton 6x4 Truck Tractor |
| Engine Specifications | |
| Make | Cummins |
| Model | ISX 480 |
| Capacity (cc) | 14 946 |
| Layout | 6 cylinders inline |
| Type | Turbo Intercooled |
| Power kw at r/min | 354 @ 2 000 |
| Torque Nm at r/min | 2 509 @ 1 200 |
| Transmission | |
| Make / Model | Eaton Ultra Shift Plus |
| Number of Forward Gears | 18 |
| Type | AMT |
| Clutch | |
| Clutch plate diameter (mm) | 394 |
| Type | Single |
| DRIVE AXLE | |
| Reduction type | Single |
| Final ratio | 4.44:1 |
| Brakes | |
| Type | Full Air Dual circuit with ABS |
| Dimensions (mm) | |
| Overall Length (OL) | 6 815 |
| Overall Width (OW) | 2 570 |
| Overall Height (OH) | 3 405 |
| Front Overhang | 1 465 |
| Rear Overhang | 1 350 |
| Wheelbase (WB) | 3 890 |
| Mass Data (kg) | |
| Manufacturer's Gross Vehicle Mass (GVM) | 25 500 |
| Manufacturer's Gross Combination Mass (GCM) | 75 000 |
| Manufacturer's Front Axle Mass | 7 500 |
| Manufacturer's Rear Axle Mass | 26 000 |
| Permissible Maximum Front Axle Mass | 7 500 |
| Permissible Maximum Rear Axle Mass | 18 000 |
| Total Unladen Mass | 8 940 |
| Permissible Maximum Drawing Vehicle Mass (DT) | 56 000 |
| Capacities | |
| Fuel Tank (l) | 800 |
| Standard Tyre Equipment | |
| Size and Ply Rating | 315/80 R22.5 |
Description: 6x4 TRUCK TRACTOR.
Warranty Period: 3 Years / 600 000km
*Combined Warranty Period: 5 years/ 900 000km
*COMBINED WARRANTY: STANDARD & EXTENDED WARRANTY
Above prices are starting from and exclusive of 15% VAT.
Prices are subject to change without any prior notice.
